No Ramp™ Utility Tilt Trailers
Please Note: No Ramp™ Trailers are currently unavailable due to material supply and manufacturing constraints.

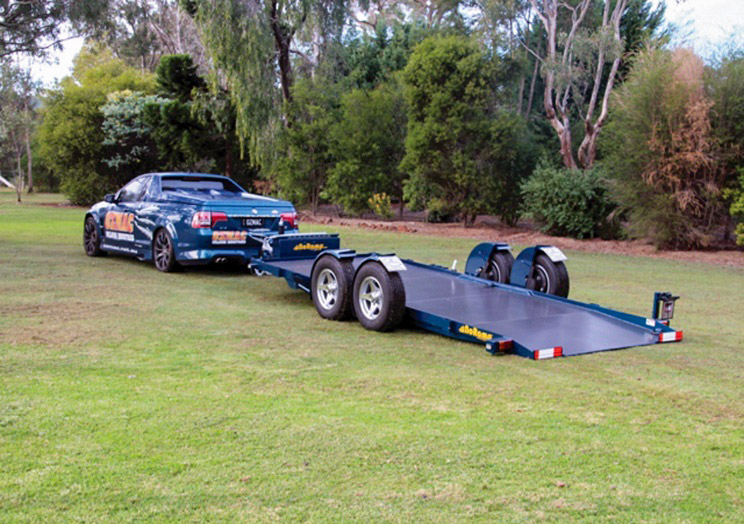

Introducing ‘No Ramp’, the most versatile and innovative utility tilt trailer in the industry. The ‘No Ramp’ Tilt Trailer’s 4° load angle completely eliminates the need for ramps when loading and unloading. ‘No Ramp’ Tilt Trailers are built for rugged Australian conditions.
Ozmac are the exclusive, Australia-wide ‘No Ramp’ Trailer dealers.
Trailer Applications:
Each ‘No Ramp’ trailer is tailored to a variety of applications:
- Agriculture Equipment,
- Bob Cats,
- Construction Equipment,
- Fork Lifts,
- Golf Carts,
- Industrial Cleaning Equipment,
- Motorbikes,
- Mowers,
- Scissor Lifts,
- Vintage & Prestige Vehicles.
Utility Trailer Models:
‘No Ramp’ utility tilt trailers are available as models: A300, A350, and A450.
Here are their specific details:
Also see the No Ramp™ Trailers site ›
A300 ‘No Ramp’ Trailer
Model specifications*
- ATM 2400 kg,
- Payload 1500 kg,
- Single Axle,
- Deck 3.860 m × 1.525 m,
- Overall length 5.1 m.
A350 ‘No Ramp’ Trailer
Model specifications*
- ATM 3500 kg,
- Payload 2300 kg,
- Tandem Axle,
- Deck 5.2 m × 1.93 m,
- Overall length 6.6 m.
A450 ‘No Ramp’ Trailer
Model specifications*
- ATM 4500 kg,
- Payload 3200 kg,
- Tandem Axle,
- Deck 5.2 m × 1.93 m,
- Overall length 6.6 m.
* Specifications subject to change without notice.
Please Note: No Ramp™ Trailers are currently unavailable due to material supply and manufacturing constraints.
No Ramp™ Tilt Trailer Standard Features:
- Patented and patent pending NoRamp tilt trailer system
- 4° load angle
- Load trailer with or without tow vehicle attached
- Manual tongue jack
- Large systems box with locking SS latch
- Locking Mechanism
- LED Lights
- Hydraulic pump and cylinders
- Group 31 deep cycle battery
- Stake pocket rub rail
- Torsion suspension
- 6 Stud 215/80 R16 and 215/80 R15 load rated tyres
- Electric Brakes (All axles)
- Safety chains
- Protected wire harness
No Ramp™ Tilt Trailer Popular Options:
- Steel mesh deck,
- Aluminium wheels,
- Remote control key fob,
- D-Rings,
- Winch plate,
- Side rails,
- Pintle hook on A450,
- Ball Coupling on A300,
Trailers are sandblasted and painted in two-pack paint which can be matched to your required colours.
Vehicle Identification Numbers (VINs)
Ozmac Welding Industries are accredited as an Authorised VIN Submitter under the provisions of the Department of Infrastructure and Regional Development Queensland.
This allows vehicle lodgement within NEVDIS. The National Exchange of Vehicle and Driver Information System (NEVDIS) exchanges information about vehicles and driver licenses across state borders. Its primary purpose is to prevent fraud and theft by ensuring ‘one vehicle, one Vehicle Identification Number (VIN)’ and ‘one person, one driver licence’.
If you want the ultimate in a quality, durable, convenient ‘No Ramp’ trailer - Don’t risk an inferior product - Contact Ozmac Welding Industries today on 07 4634 4833 or via our Contact Us page.
Please Note: No Ramp™ Trailers are currently unavailable due to material supply and manufacturing constraints.
